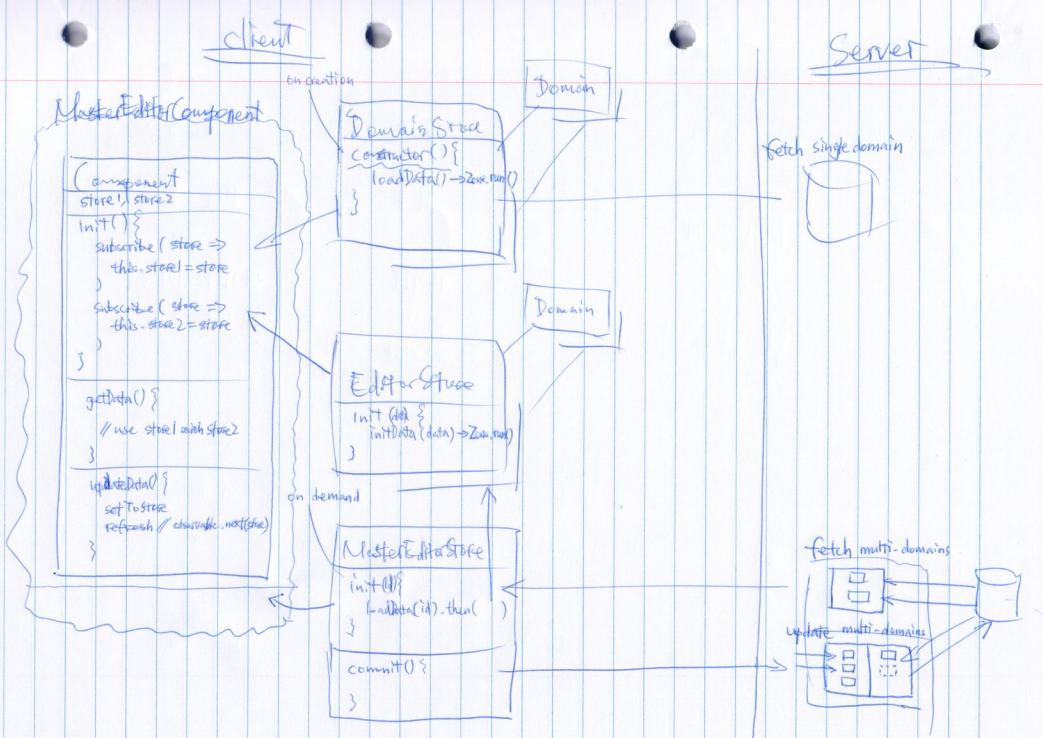

Advanced Angular Project Structure

• Concept of Editors
  • DisplayComponent - Viewing and Interaction
  • EditorComponent - Has temp data waiting to be saved
• Data stores
  • Domain Stores
  • Editor Stores
  • Active Items Stores
  • Master Editor Stores - init(), isReady(), commit()
• Interacting with data stores
  • Data store data initial loading - Zone
  • Data store data update data via interaction - Observable

Data loading:

• Domain store - domain store data is loaded on creation (fetch data for one domain)
• Master editor store - data is loaded on demand - when the editor is launched (fetch data for multi-domains)
• Editor stores - Master editor store load data, then set into editor stores (set store per domain)

Mappings:

• Each store maps to one domain only

Component:

• May use multiple domains from multiple stores
• Use class variable to keep a copy of the whole store(s), each per domain
• Using data - Have methods to combine multi-stores to get data // auto-refreshed when observable.next(store) is called
• Updating data - Have methods to update stores and call refresh // refresh == observable.next(store)
